MODULUS
HVAC SCREENS
Modulus HVAC Screens designs and manufactures custom rooftop equipment screens and screen walls for your project
- INSTALLER FOCUSED DESIGN
- FACTORY-ASSEMBLED PANELS
- ADJUSTABLE FEET FOR SLOPED ROOFS
- ENGINEERED FOR PERFORMANCE
- ROOF-WARRANTY COMPATIBLE
INSTALLATION MADE EASY
PREASSEMBLED PANELS
Fully Assembled Panels bolt together in the field, eliminating on-site assembly to reduce labor and ensure consistent, high-quality results.

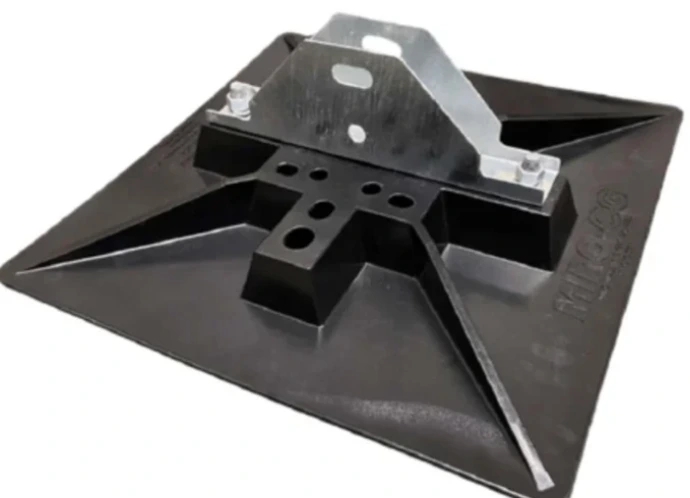

ADJUSTABLE FEET
Adjustable feet accommodate sloped roofs, ensuring a level and secure installation. The leg height is easily adjusted in the field.
PRECISION BUILT
Every screen is precisely manufactured, eliminating the need for field modifications.
ROOF-SAFE DESIGN
For TPD and EPDM roof systems, ballasts and feet are installed on protective rubber mats and slip sheets to help meet roof warranty requirements.
As an original equipment manufacturer, we do not perform installations; however, paid installation oversight is available. Our staff can be on-site to support and coordinate with your installation contractor.
ENGINEERED PERFORMANCE
NO ROOF PENETRATIONS
No Roof Penetrations, our follows roof warranty requirements for Built Up Rubber (BUR), TPO, and EPDM roofs.
Patent Pending designs. Wind loads vary by project location and building conditions, so we do not provide a single, fixed wind load rating. Our PE reviews every installation to ensure the screen system is engineered to meet the applicable design wind pressures ensuring compliance with applicable IBC and ASCE standards. Stamped drawings are available in all 50 states for an additional fee.
NO PUNCTURING THE HVAC UNIT'S WATERPROOF SHELL
Fasteners are restricted to the heavy-gauge structural baserail only; do not penetrate the unit's upper weatherproof enclosure or internal component zones.
LONG LASTING FINISHES
FEVE fluoropolymer coatings meeting AAMA 2605 provide long‑term resistance to fading, chalking, corrosion, and severe weather exposure. These finishes typically deliver 15–30 years of durability with stable color and gloss under extended UV and temperature cycling. FEVE systems are also among the most environmentally friendly high‑performance coatings due to their low‑VOC formulation and long service life, reducing repainting and overall environmental impact.
MINIMAL EXPOSED FASTENERS
preserve clean architectural lines. Our fasteners for panels are hidden and only where posts connect would you see bolt hardware from the side. Our post free version has no exposed fasteners.
CUSTOMIZATION

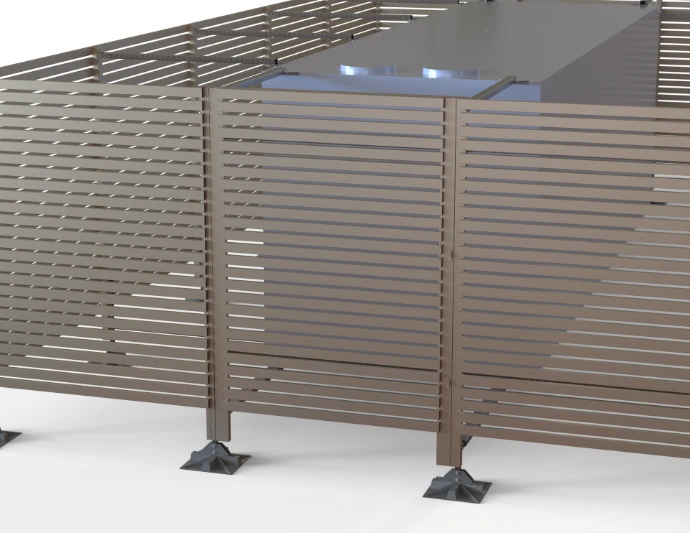

We offer access doors and custom cutouts for piping or ductwork. As part of our process, we perform a takeoff to make sure every opening, clearance, and service point is accounted for before fabrication.
PANEL STYLES

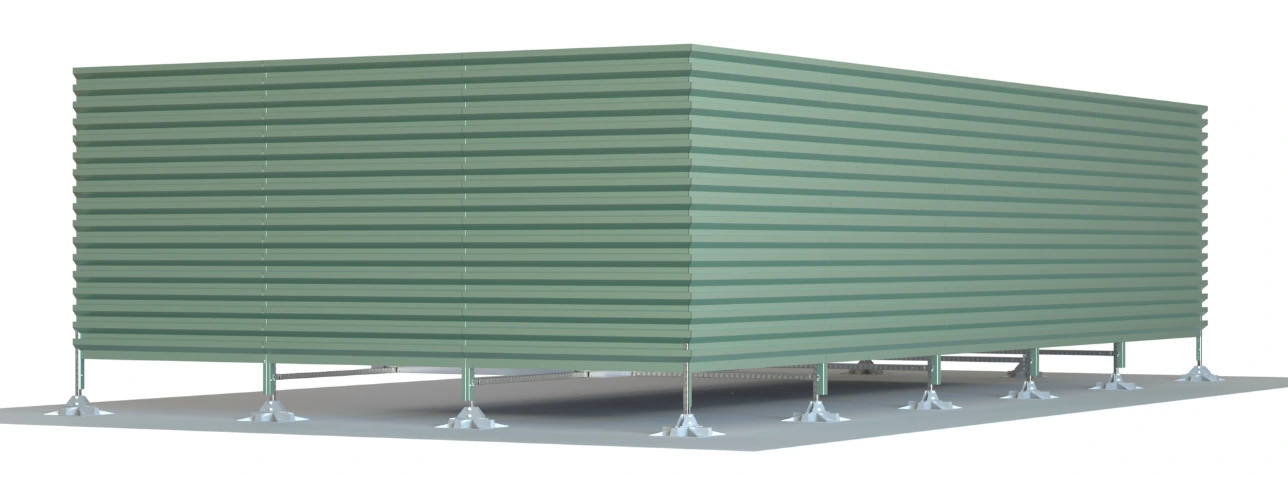

Post Free Panel – Continuous architectural look with hidden posts
Post Free - Z-Profile
100% visual coverage (no airflow through louvers)

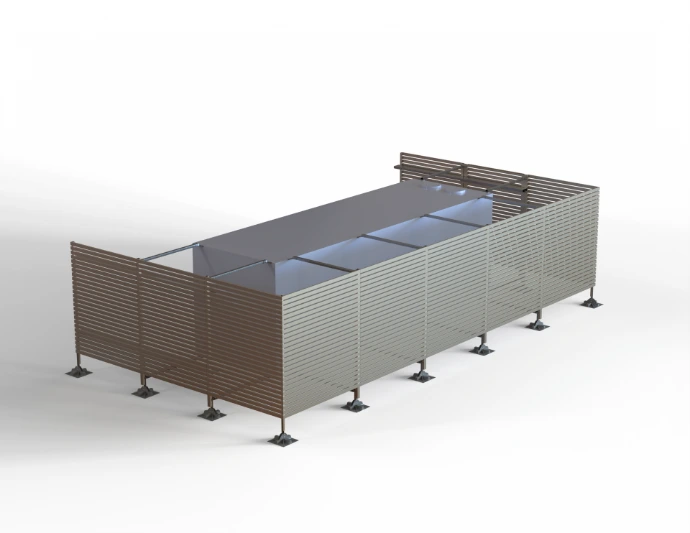

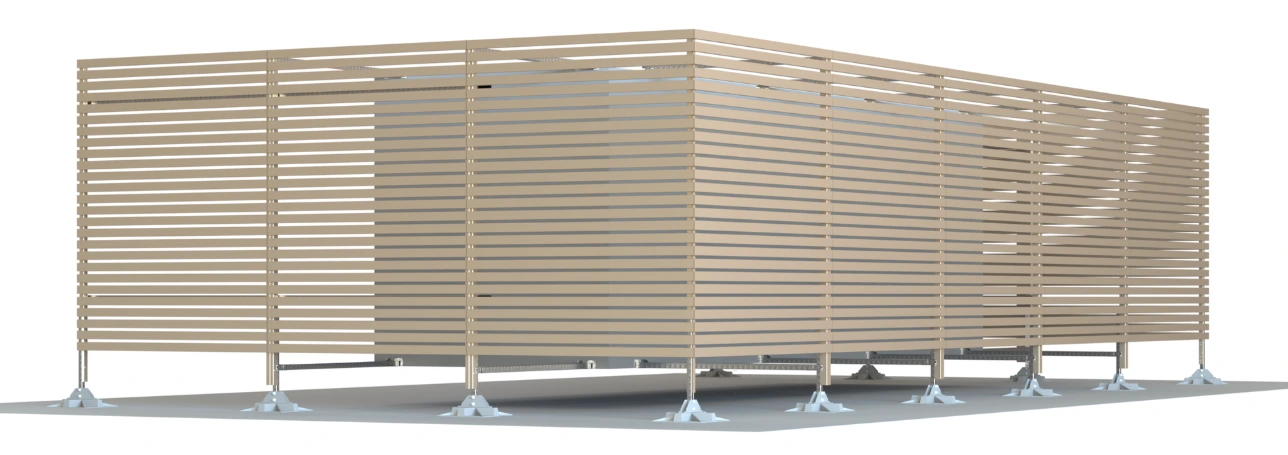

Post Free - Slat
3-inch slats with 1-inch spacing

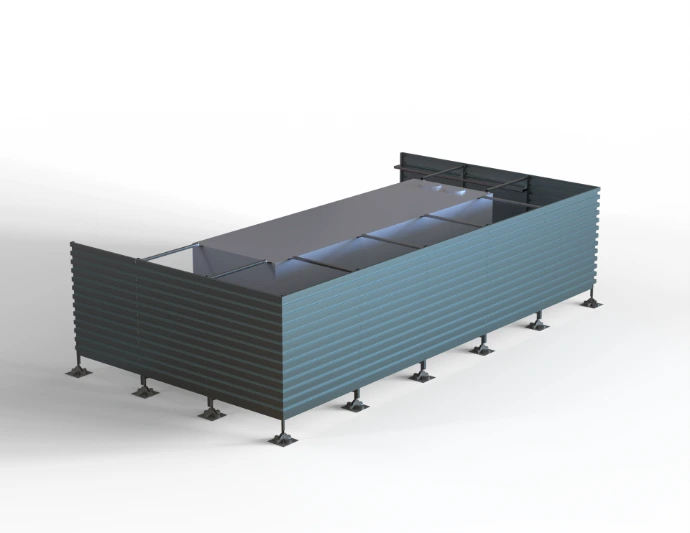

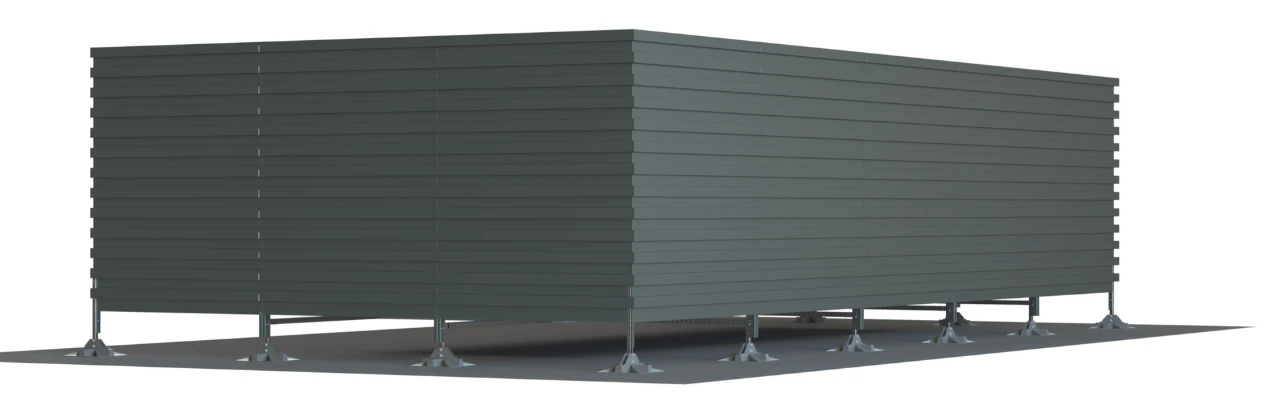

Post Free - Ribbed
Visible Post - Z-Profile
100% visual coverage (no airflow through louvers)
Visible Post - Slat
3-inch slats with 1-inch spacing
UNIT-MOUNTED SCREENS - Unit-connected Screens attach to the baserail of the unit, providing a clear load path while minimizing penetrations into the unit. We apply later force against the
BALLAST-MOUNTED - With our Patent Pending design, the screen supported by a freestanding, weighted ballast system without attaching to the equipment.
Visible Posts - Vertical posts visible in finished appearance.
Panels aluminum construction. Custom panel configurations and finishes may be available upon request.
